SPECIFICATIONS
Protocol	Zigbee
Power	AC, DC

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sonoff

Sonoff MINI-D Zigbee Smart Switch (Gate Garage Smart Switch)

Name: Sonoff MINI-D Zigbee Smart Switch (Gate Garage Smart Switch) - Untamed Tech
SKU: sonminidzig
Price: 329.00 ZAR
Availability: InStock

Rated 0 out of 5

R329,00

Prices include VAT. Delivery shown at checkout.

SONOFF MINI Dry Zigbee Dry Contact Smart Switch (MINI-ZBD)

Compact Zigbee dry contact switch for garage doors, gates, boilers and other dry-contact devices.

Key Features:

True dry contact output (NO/NC)
Supports 100–240V AC or 12–48V DC power
Controls DC motors & solenoids up to 8W
Zigbee 3.0 + acts as a mesh router
Inching/pulse mode for garage doors & gates
Excellent Home Assistant / Zigbee2MQTT support
Ultra-compact: 41 × 43 × 21.5 mm

Requires a Zigbee 3.0 hub.

Category:

DIY / Retro Fit Modules

Smart Switches

Stock:

45 in stock

Perfect Match With

Sonoff

SONOFF Basic DIN Rail 32A Zigbee Smart Switch BASIC-ZB1GSP

R549,00

Sonoff

SONOFF SNZB-02LD IP65 Zigbee LCD Smart Thermometer (Probe Version)

R429,00

Sonoff

SONOFF NSPanel Pro Smart Home Control Panel 120 Black

R2249,00

Sonoff

SONOFF Zigbee Motion Sensor SNZB-03P

R249,00

Sonoff

SONOFF Zigbee Smart Water Valve

R570,00

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

      EXCELLENT
   Based on 702 reviews







       Posted on Google

   Johan Grobbelaar



 Trustindex verifies that the original source of the review is Google. What a nice and efficient company to deal with !

Thanks Guys


      Posted on Google

   Reuben Naidoo



 Trustindex verifies that the original source of the review is Google. Excellent service as always


      Posted on Google

   louis massey



 Trustindex verifies that the original source of the review is Google. great service.


      Posted on Google

   Clifford Hankey



 Trustindex verifies that the original source of the review is Google. I think their prices are well below their competitors and delivery was exceptional. The setup was easy if you follow the instructions!  Can definitely recommend them.


      Posted on Google

   Ryan Harris



 Trustindex verifies that the original source of the review is Google. Prompt delivery, great technical support. The WiFi switch and contact works very well on my garage door.





     Verified by Trustindex  Trustindex verified badge is the Universal Symbol of Trust. Only the greatest companies can get the verified badge who has a review score above 4.5, based on customer reviews over the past 12 months. Read more

Overview

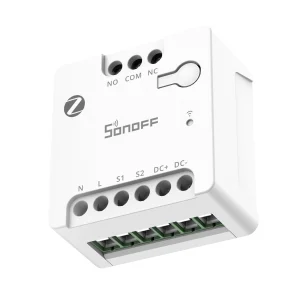

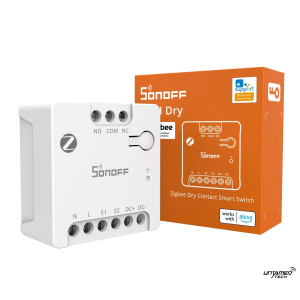

SONOFF MINI Dry Zigbee Dry Contact Smart Switch (MINI-ZBD)

Automate garage doors, electric gates, boilers, pumps and other dry-contact devices with the compact and versatile SONOFF MINI-ZBD Zigbee Dry Contact Smart Switch. Unlike standard relays that switch live power, this module uses a potential-free dry contact (NO/NC) output — making it ideal for systems that expect a simple switch signal rather than voltage.

Key Features

True Dry Contact Output (NO/NC) – Safely controls garage door motors, gate openers, boilers, solenoid valves, fire alarms and more without modifying existing wiring or sending voltage to the controlled device.
Flexible AC & DC Power – Works with 100–240V AC or 12–48V DC input. Perfect for standard home installations as well as solar, battery, RV or low-voltage systems.
Zigbee 3.0 + Router Function – Reliable low-power mesh connectivity. Acts as a Zigbee router to extend and strengthen your network.
Direct Control of Low-Power DC Loads – Supports DC motors and solenoid valves up to 8W (or 24V DC / 2A resistive).
Inching / Pulse Mode – Essential for most garage door and gate motors that require a momentary contact.
Excellent Home Assistant Support – Works natively with ZHA and Zigbee2MQTT for fully local control. Also compatible with eWeLink, SmartThings, Alexa and other Zigbee hubs.
Ultra-Compact Design – Measures just 41 × 43 × 21.5 mm, making it easy to install in tight spaces or control boxes.

Ideal Applications

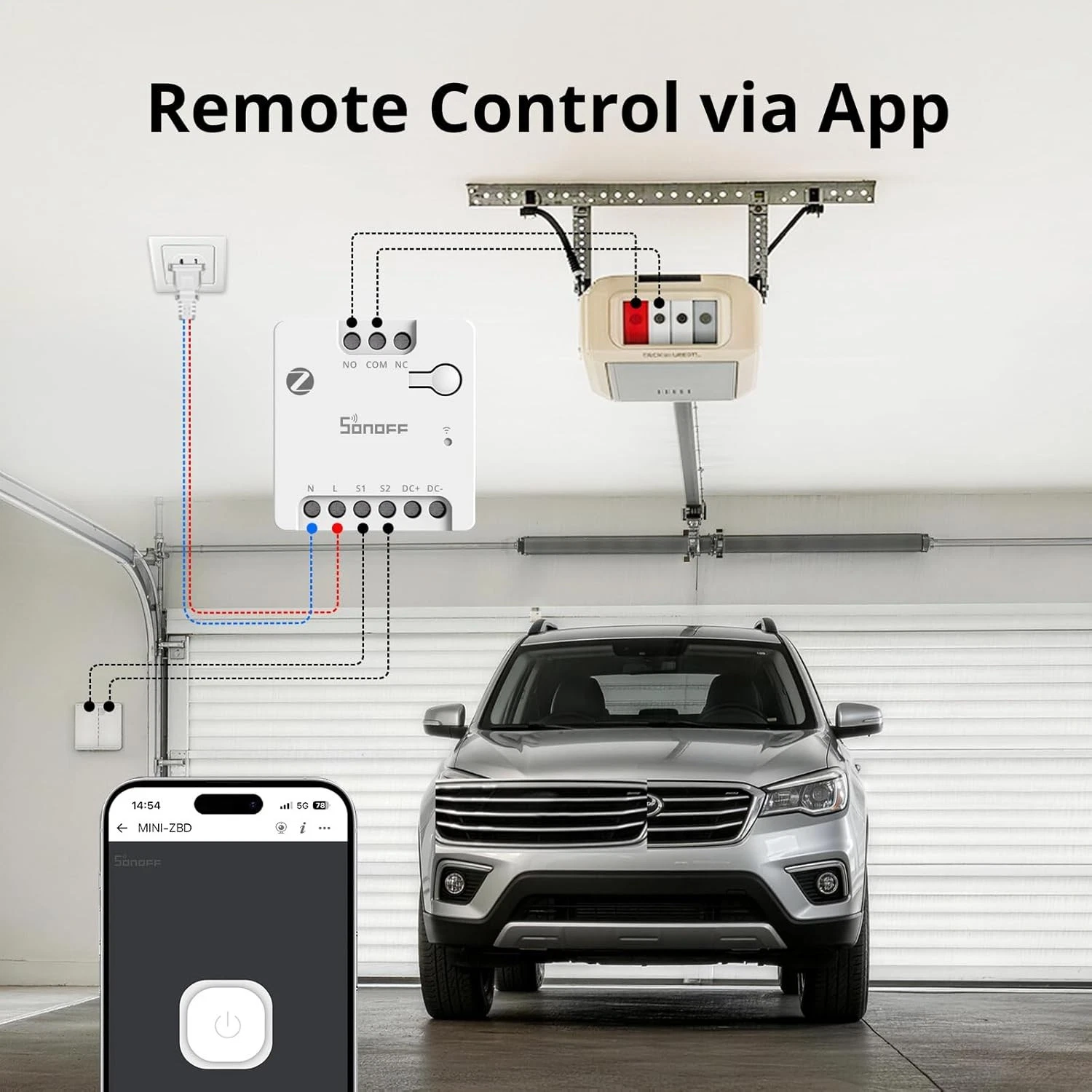

Garage door automation
Electric gate / boom barrier control
Boiler and heating system control
Irrigation valves and pumps
Low-voltage DC motors and solenoids
Any device that uses a dry contact / push-button input

Technical Specifications

Specification	Details
Model	MINI-ZBD
Protocol	Zigbee 3.0 (IEEE 802.15.4)
MCU	EFR32MG21
Power Input	100–240V AC 50/60Hz (0.1A max) or 12–48V DC (1A max)

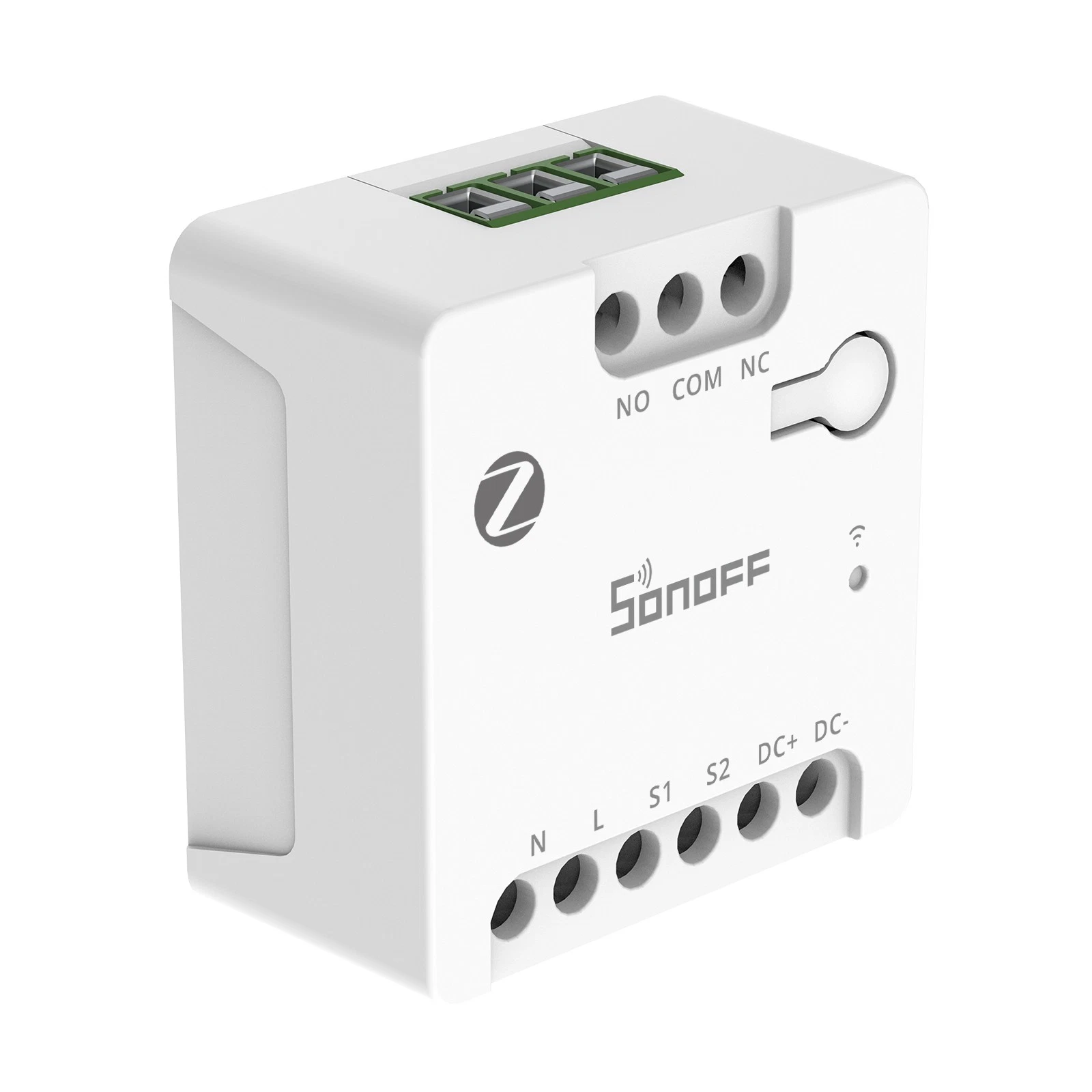

Output	Dry Contact (NO / NC / COM)
Max Load	24V DC 2A resistive or 12/24V DC 8W

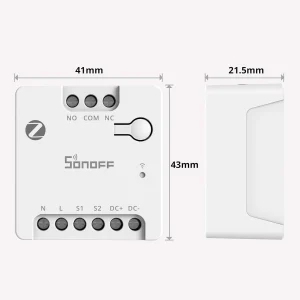

Dimensions	41 × 43 × 21.5 mm
Weight	34.5 g
Wire Size	0.75–1.5 mm² (18–14 AWG)
Operating Temperature	–10°C to 40°C
Certifications	CE, FCC, RoHS

Note: A Zigbee 3.0 hub/coordinator is required (e.g. SONOFF ZBDongle-E/P, ZBBridge, Home Assistant Green + Zigbee stick). Do not connect AC and DC power sources at the same time.

Upgrade your garage door, gate or dry-contact devices with reliable Zigbee automation. The SONOFF MINI-ZBD is one of the most flexible and compact dry contact solutions available for Home Assistant and smart home installations.
